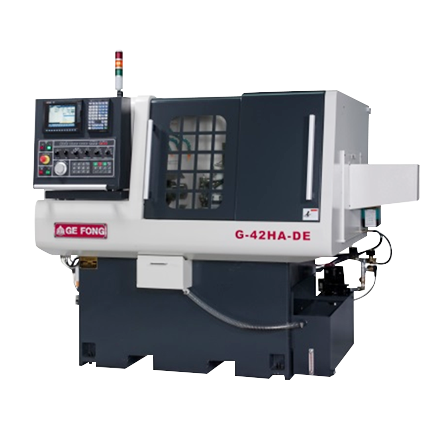

G-42HA-DE

CNC Fixed Head Automatic Lathe

Gang ToolG-42HA-DE

  • catalog

    Machine specification

    MODEL G-42HA-DE
    Controlled axes X, Y, Z, C
    Bar capacity 42mm
    Max. turning length Bar capacity x 2.5~3
    Max. face drilling dia.
    Fixed drill Ø10mm
    Live drill Ø6mm
    Max. face tapping size
    Fixed tap M10
    Live tap M5
    Max. cross drilling dia. Live drill Ø6mm
    Max. cross tapping size Live tap M5
    Spindle collet type 173E
    3-jaw chuck size (OP.) 6 inch
    X-axis travel 140mm
    Z-axis travel 230mm
    Y-axis travel 120mm
    Rapid traverse 24m/min (max.)
    Spindle indexing 0.001° (C axis)
    Spindle motor (Cont/15min.) 3.7 / 5.5KW
    Max. spindle speed 4500RPM
    Controlled axis motor
    Mitsubishi : X, Z axis 1KW / Y aixs 0.75KW
    Fanuc: 0.75KW
    Tool spindle motor Mitsubishi 1KW / Fanuc 0.75KW
    Hydraulic motor 0.75KW
    Coolant motor 0.75KW
    Lubricant motor 0.0035KW
    Face live tool Nos/collet Face : 3 / ER11(Ø7mm)
    Cross live tool Nos/collet Cross : 3 / ER16(Ø10mm)
    OD tool shank 16 x 16 mm
    Fixed ID tool collet ER16(Ø10mm)
    Max. boring bar size Ø20mm
    Spindle bore Ø46mm
    Spindle center height 1120mm
    Required power source 3Ø220V x 10KVA
    Required compressed air 6 Kg/cm2 x 50 Nl/min
    Machine size (WxDxH) 2,060x1,660x1,700mm
    Machine weight 2,200 kgs

    * All specification are subject to change without prior notice.

    * The machine can be equipped with either a Fanuc or Mitsubishi controller upon request.

    * This model install with gang tool holder in X-axis, it doesn’t allow installing tailstock.

    Standard Accessories

    ITEM
    Tool kit (containing tools for set-up, adjustment, and leveling bolts, block, etc)
    Automatic lubrication system
    Work lamp
    3-tiered pilot lamp
    Coolant pump
    Pressure sensor
    Hydraulic collet chuck
    Parts catcher
    Parts collection box
    Bar feeder interface
    ER16 collet nut (for cross live tools and fixed ID tools)
    ER11 collet nut (for face live tools)
    Cutting tools, spindle collet and drill chucks for parts to be set up, but special tools not included.

    Optional Accessories

    ITEM
    Magazine type auto bar feeder
    3-jaw chuck (6”)
    Chip conveyor
    Foot switch for chuck control
    ER20 collet nut (for optional fixed ID tool ER20 collet holder or 2/ER20 face live tool attachment)
    Ø 18mm shank fixed OD tool holder (for interchange with cross live tool ER16 collet holder)
    Cross live tool ER16 collet holder (spare for use when face live tool attachment is to be removed and interchange)
    Safety door switch for cutting tool room
    Transformer
    1. ID, OD, cross machining, off-center drilling and tapping can be efficiently accomplished in one setup.
    2. The Cs-axis provides contouring functions (words and pattern engraving). The spindle accurately orientates at any angle.
    3. If 4 cross live tools are required, the face live tool attachmentcan be removed and interchanged with a spare cross live tool ER16 collet holder
    4. The cross live tool ER16 collet holder is cartridge type, and can be interchanged with 18mm shank fixed OD tool holder.
    5. The C-axis is equipped with a disc brake, ensuring improved stability of machining.
    6. Once parts machining is finished, the parts catcher will deliver the parts to the parts collection box, and then can be taken out outside the machine.
    7. Swing control box facilitates running test.
    g-42ha-det

    C-axis Brake

    • The C-axis employs a hydraulic disc brake, enabling spindle orientating accuracy to reach 0.001. Another benefit is to lock the spindle securely for increasing stability when performing heavy cutting on end and side faces. (Such as cross drilling, tapping, milling and end-face off-center machining.)
    g-42ha-det
    1. Live tool spindle motor
    2. Y-axis motor
    3. Cross live tool attachment (ER16)
    4. Detachable face live tool attachment (ER11)
    5. Cross live tool ER16 collet holder
      It can be interchanged with #8 optional 18mm shank fixed OD tool holder.
    Fixed ID tool ER16 collet holder (standard, 4 pcs)

    Fixed ID tool ER16 collet holder (standard, 4 pcs)

    ER16 collet nut (standard, 7 pcs)

    ER16 collet nut (standard, 7 pcs)

    18mm shank fixed OD tool holder (optional)

    18mm shank fixed OD tool holder (optional)

    Fixed ID tool ER20 collet holder with nut (optional)

    Fixed ID tool ER20 collet holder with nut (optional)
