G-32HA

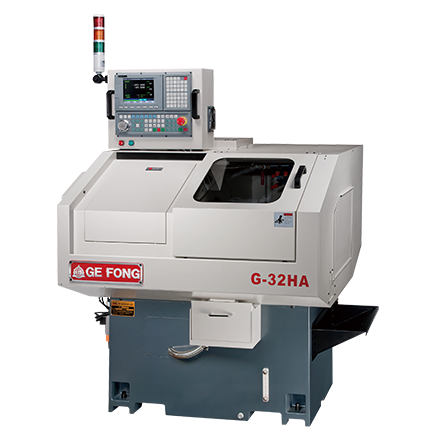

CNC Fixed Head Automatic Lathe

Gang ToolG-32HA

  • Machine Specification

    MODEL G-25/30/32 HA (A)
    Axis name X, Z
    Bar capacity 25 / 30 / 32 mm
    Max. turning length Bar diameter x 3
    Spindle bore 27/34/34 mm
    Collet type 161E / 163E / 164E
    3-jaw chuck size 5 inch
    X-axis travel (Radius/dia.) 340 / 680mm
    Z-axis travel (if collet) 95mm (Between collet and cut-off tool holder)
    Spindle motor (rated/15min.) 2.2KW
    Max. spindle speed
    6,000 RMP
    Axis motor 0.75 KW
    OD tool shank size 16 x 16 mm
    Fixed ID tool collet ER16
    Boring bar diameter 20 mm
    Spindle center height 935 mm
    Packed machine size 1,850 x 1,550 x 2,080 mm
    Packed machine weight 1,200 kg

    *Spindle collet type for G-32 series can be local type as an option, other than 164E.

    * All specifications are subject to change without prior notice.

    Standard Accessories

    ITEM
    1. Syntec / Mitsubishi / Fanuc controller
    2. Standard tools (setup, adjustment)
    3. Coolant pump, including flow sensor
    4. Hydraulic collet chuck (available only with HA model)
    5. Tools, collets for one part requested, but special tools not included.
    6. Tool holders (refer to picture)
    7. Product catcher & Product box

    Optional Accessories

    ITEM
    1. Magazine type auto bar feeder
    2. 3-jaw hydraulic chuck (5 inch) (available only with HA model)
    3. Foot switch (only for single piece working)
    4. Chip conveyor & Chip cart
    5. Oil mist collector
    6. Tool holders (refer to picture)
    7. Linear guide
    1. Very cost-effective, good for ID/OD working of long bar or single work.
    2. Basing on O32mm bar to be processed, total 8 OD&ID tools can be mounted.
    3. Gang tool type, free of maintenance of tool turret.
    4. Products can be accessed from the machine outside.
    5. Slide-left machining safety door design.
    G-32HA

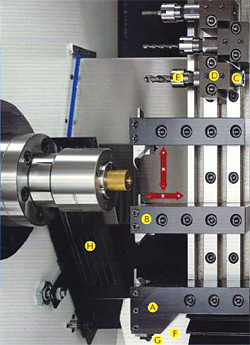

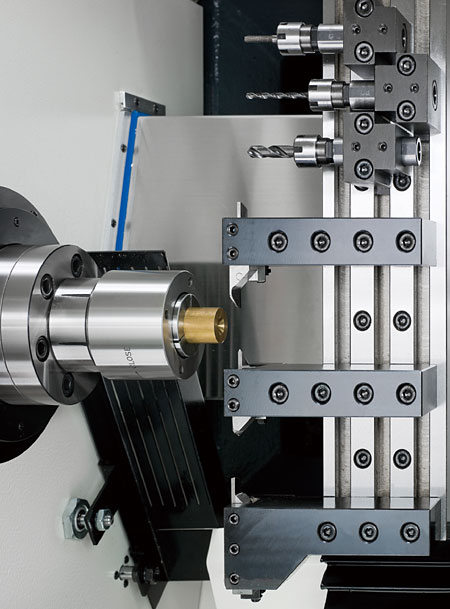

    1. Left-handed cut-off tool holder (I pc, standard)
    2. 2-position OD tool holder (tool shank radially mounted)
      (Standard, 2pcs)
    3. Fixed ID tool ER16 collect holder (standard:3pcs)
    4. 20mm bore 1 position ID tool rest (standard:3pcs)
    5. ER16 drill collect nut (standard:3pcs)
    6. Product receiving mouth
    7. OD tool center height adjustment screw
    8. Product catcher
    G-32HA

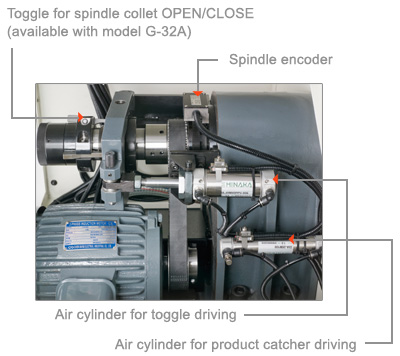

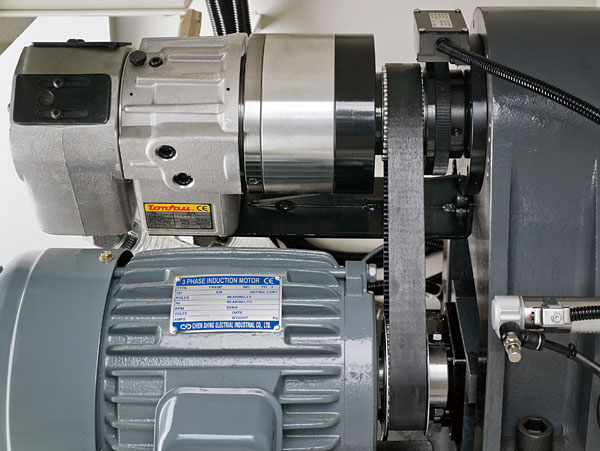

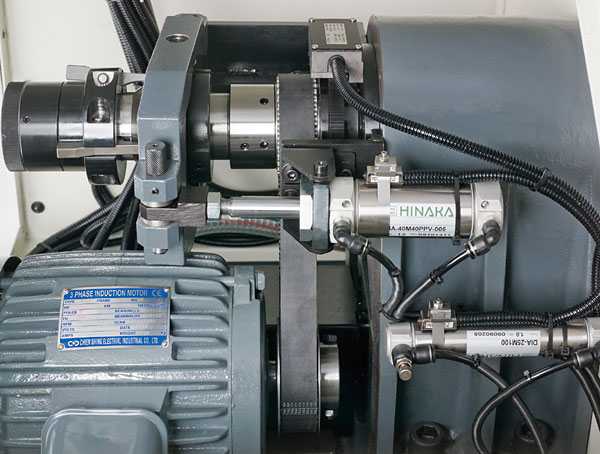

    Hydraulic cylinder for spindle collct OPEN/CLOSE (available with model G-32HA)

    G-32HA
    2-position ID tool rest (option)

    2-position ID tool rest (option)

    I -position ID tool rest (standard. 3 pcs)

    I -position ID tool rest (standard. 3 pcs)

     Fixed ID tool ER 16 collet holder (standard. 3 pcs)

    Fixed ID tool ER 16 collet holder (standard. 3 pcs)

     3-positon ID tool holder (option)

    3-positon ID tool holder (option)

    2-position OD tool holder (shank axially mounted) (standard 1pc)

    2-position OD tool holder (shank axially mounted) (standard 1pc)

    Note: Tool center height not adjustable

    Fixed ID tool ER2O collet holder with nut (option)

    Fixed ID tool ER2O collet holder with nut (option)

     ER 16 drIll collet nut
(standard. 3 pcs)

    ER 16 drIll collet nut (standard. 3 pcs)

  • G-32HA
    G-32HA
    G-32HA
