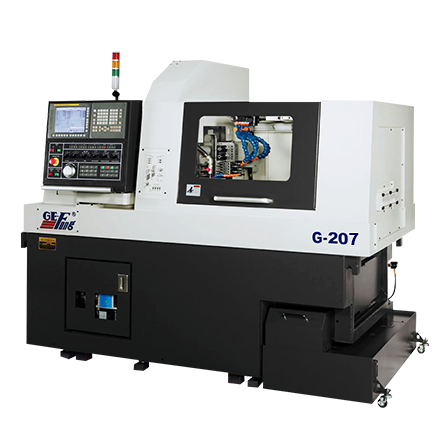

CNC Swiss Type Automatic Lathe

Description

All needs of the times are included and integrated into one machine. Multi-functional & low cost / performance ratio.

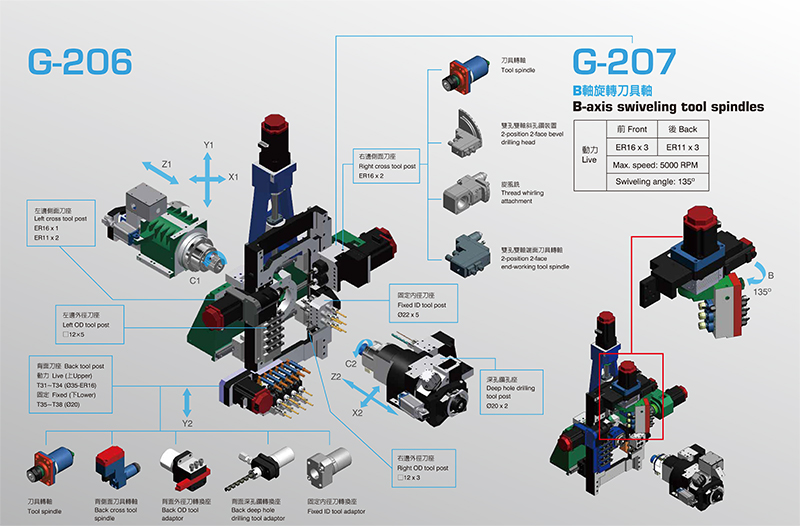

B-axis swiveling tool spindle processes with C-axis, increasing the ability to cut the accurate angles. The B-axis feature makes this machine into multifunction equipment can turning or milling any angle.

Best choice for batch or mass production of various complicated parts.

G-207 Sample

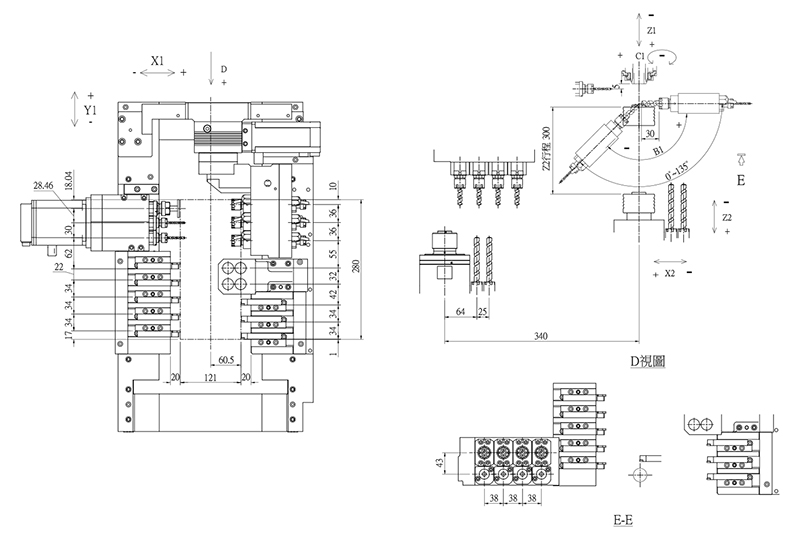

G-207 Tool capacity

Model	G-207
No. of tool positions	31
Max. No. of mountable tools	35
OD tool (T04 – T08, T21 – T23)	8
Face fixed ID tool (T15 – T19)	4
Face deep-hole drilling tool (T91 – T92)	2
Back fixed ID tool (T35 – T38, T45 – T29)	4 (OP.:8)
Left cross live tool (T01 – T03)	3
Right cross live tool (T11 & T13)	3 (B-axis)
Face live tool (T11 & T13)	3 (B-axis)
Back live tool (T31 – T34, T11 & T13)	4+3 (B-axis)

Machine specification

Model					G-207
Machining capacity		Main spindle	Bar stock diameter		ø3 ~20 mm
			Max. machining length		210 mm ( Motor direct - drive guide bushing) 250 mm ( Fixed type guide bushing) 80 mm ( Mechanical-drive guide bushing ) 45 mm (Guide bushing-less )
			Drilling		ø10 mm
			Tapping		M8
			Deep hole drilling		ø8 mm
		Back spindle	Max. work chucking diameter		ø20 mm
			Drilling		ø8 mm
			Tapping		M6
		Live tool spindle	Drilling / tapping (Left cross tool)		ø6 mm / M5
			Drilling / tapping (Right cross tool)		ø6 mm / M5
			Drilling / tapping (Back tool)		ø6 mm / M5
			Max. slitting saw / slotting cutter dia.		ø30 mm (T01)
Speed		Main spindle			200 ~12,000 min-1
		Back spindle			200 ~12,000 min-1
		Rotary guide bushing			200 ~12,000 min-1 ( Motor direct - drive) 200 ~8,000 min-1 ( Mechanical-drive )
		Tool spindle			200 ~8,000 min-1 (B-axis 5,000 min^-1)
Controllable axes(including Cs axes)					9 axes
Rapid traverse (m/min)					30m/min (X : 24m/min)
OD tool shank					12 × 12 × 100 mm
Tool positions / Max. mountable tools					31/35
Motors	Main spindle				2.2 / 3.7 KW( Cont. / 15 min )
	Back spindle				1.5 / 2.2 KW( Cont. / 5 minutes)
	Tool spindle			Left cross tool	0.75 KW
				Right cross tool	0.75 KW
				Back tool	1.0 KW
	Rotary guide bushing				0.75 / 1.1 KW( Cont. / 15min)
	X1．X2．Z1．Z2．Y2 axes				0.5 KW
	Y1 axis				0.75 KW
	B axis				0.5 KW
	Coolant pump				0.75 KW
	Lubricating pump				0.011 KW
Axis travel	X1				124 mm
	Y1				280 mm
	Z1 ( Fixed guide bushing )				290 mm
	X2				340 mm
	Y2				60 mm
	Z2				300 mm
Power, etc	Weight				3,700 Kg
	Power source requirement				14.3 KVA
	Compressed air requirement				≧ 4 Kg / cm2
	Air consumption				40 NL / min
	Width × depth × height				2,300 × 1,400 × 2,000 mm

All specifications are subject to change without notice in advance.

Standard NC specification

Item	G-207
Controller	FANUC 32i-B
No. of controlled axes	9 (X1,Z1,Y1,C1,X2,Z2,Y2,C2,B)
Spindle synchronous control (speed＆phase angle)	S1- S2 (Main spindle -Back spindle )
Axis synchronous control	Z1-Z2, C1-C2
Axes simultaneously controlled	Max. 4 axes / each path
Axis composite control	X1-X2 , Z1-Z2
Max. programmable dimension	± 8 digits
Rapid traverse rate	32 m / min (X1, Y1, Y2: 24 m / min)
Spindle / Feed rate override	0 ~150%, 10% increments
Tool offset pairs (S1+S2)	±6 digits 200 pairs
Display unit	10.4”color LCD
Part program storage length	2 megabytes(S1+S2)
Programs stored	1,000

Standard Accessories

Item
Main spindle sleeve (for round bar machining)
Back spindle sleeve (for round bar machining)
Door interlock(Tooling zone side door / Main spindle side door )
Coolant pressure switch
Spindle cooling unit
Standard tools
Transit clamps
Automatic power shut-off
Back spindle air purge
Cross live drill air purge
Coolant pump(1HP)
Internal work light
Manual pulse generator
3-tiered warning lamp set
Work catcher
Work conveyor
Bar feeder interface
RS232 interface
Fixed guide bushing
Motor direct-drive rotary guide bushing
Guide bushing-less kit
Main spindle brake (0.001° increments)
Back spindle brake (0.001° increments)
Cross tool spindle
Back tool spindle
Front & rear discharge from back spindle

Optional Accessories

Item
Guide bushing system	Mechanical-drive rotary guide bushing
Options for spindle indexing	Main spindle pin-locking device ( 15° increments)
Options for spindle indexing	Back spindle pin-locking device ( 15° increments)
Options for back live tools (T31 ~ 34)	Back OD tool holder
	Back deep hole drilling tool holder
	Back cross tool spindle
	Adaptor for fixed tool
High pressure coolant system	70 bar
High pressure coolant system	40 bar
Oil mist collector
Chip conveyor and chips cart
Main spindle sleeve( for non-rounded bar machining )(Mechanical-drive guide bushing)
Main spindle sleeve (for non-rounded bar machining) (Guide bushing-less type)
Back spindle sleeve (for non-rounded bar machining)
AR16 drill collet holders for fixed ID tool post	Drill collet holder (ø22-shank, for T15～19, 45～49)
	Double-face drill collet holder (ø22-shank ,for T15～19, 45～49)
	Adjustable double-face drill collet holder(ø22-shank , for T15~19, 45~49)
	ER16 Drill collet holder (ø20- shank , for T35～38, 91, 92 )
	Floating tap ER16 collet holder (ø20/22-shank)
Safety and others
	Bar feeder
	Transformer

Modular tooling
- Free arrangement of different tool spindles, ID tool holders and OD turning tool holders according to tooling requirements of the parts to be produced.
With separate back tool post and cross traveling of back spindle, exactly simultaneous machining at main spindle side(S1) and back spindle side(S2) can be achieved without need to wait with each other, reducing cycle time much.
With Y-axis for back tool post
- 4 live tools(T35~38) and 4 fixed tools(T31~34)
- Back cross tool spindle(as the picture shown below ) : Available for back slitting、cross drilling、tapping or milling ,depending upon cutting tool in use . Total 2 back cross tool spindles can be mounted with one tool position between.
- Back tool spindle: Available for back milling、 off-center drilling、tapping, etc.

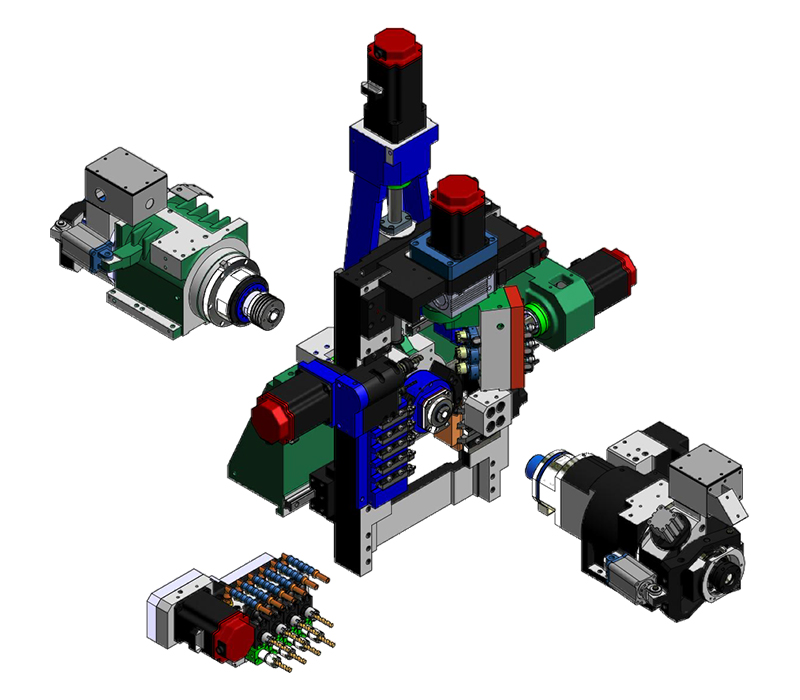

- Cartridge type tool spindle design for T31~34 , available for interchange with other different tool spindle or adaptor for fixed tool , more choices for tooling layout design
Direct motor-drive rotary guide bushing, available for high-speed and accurate machining
- Max. speed: 12,000 min-1
- Max. machining length : 210 mm Geometry accuracy、dimension accuracy and surface roughness are much improved, with less noise even at high speed.
Guide bushing type or guide bushing- less type is selectable according to length of the parts to be produced
- Guide bushing-less type does not require ground bar stocks, suitable for cold drawn bar machining also, reducing the remaining bar length.
4-spindle cross tool attachment can be mounted, available for Y-axis complex tooling, such as cross drilling, tapping, up-down milling, etc.
Additional face deep hole drilling post is attached beside the back spindle. Max. drilling depth can be up to 100 mm.
- Single-face or double-face drill collet holder can be mounted at ∮22- bore 5-position fixed ID tool post , available for face or both face /back ID working
Direct C-axis indexing
- When spindle indexing is done from spindle rotating state, it stops at indexed position directly, without need to return to reference point, reducing spindle indexing time.
High rigid machine bed
- Machine bed design was supported by FEM(Finite element method) analysis to produce high-rigidity machine, assuring high-speed, high-accuracy machining.
Work catcher
- Conveying the work discharged from back spindle through the chute to work conveyor, then work container
